Technical description

DESIGN CLASSIFICATION OF PASSENGER LIFTS

The following section describes passenger lifts categories of design and equipment.
These categories indicate categories of building in terms of their use, such as residential buildings, commercial buildings, hotels, banks, shopping centres, business centres, hospitals, etc.
Each category includes a standard version, design, and equipment. Each category can be supplemented with additional equipment. In case a customer is interested in a special customised design, the TDS department (Tuchyňa Design Solutions) prepares a custom-made solution.

PASSENGER LIFTS CLASSIFICATION:

Series - Classic (CS)
Series - Corporate Luxury (CLS)
Series - Glass (GS) and Panoramic (PS)
Series - TDS (Tuchyňa Design Solutions)

SERIES	CS	CLS	GS	PS	TDS*

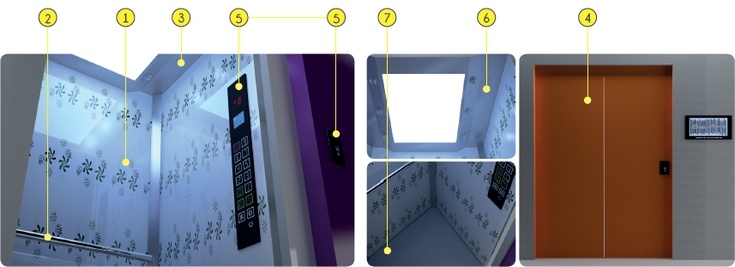

1. CABIN SURFACE FINISH	HPL, LA	DG, AD	GL	DG, GL	all materials
2. HANDRAIL (MATERIAL / NUMBER)	INOX/1	INOX/1	INOX/1	INOX/1	AL., INOX
3. CABIN CEILING	LA, INOX	LA, INOX	LA, INOX	LA, INOX	LA, INOX
4. DOOR	ESN RAL	ESN RAL, LA, DG	ESN RAL, LA, DG	ESN RAL, LA, DG	ESN RAL, LA, DG
5. COP AND LOP	INOX	GLASS, INOX	GLASS, INOX	GLASS, INOX	GLASS, INOX
6. LIGHTS	SL LED, PI LED	SL LED, PI LED	SL LED, PI LED	SL LED, PI LED	SL LED, PI LED
7. FLOOR	AS	CR, MG	CR, MG	CR, MG	CR, MG

Abbreviation
HPL - Laminate lining	AS - Anti-slip PVC floor	SL LED – Spotlight LED lights
LA - Plastic-coated decorative plate	CR - Ceramic floor	PI LED - Pipe LED light
DG - Decoglass (decorative glass)	MG - Marble, granite
AD - Aldecco (decorative metal lining)	ESN RAL - Electrostatic coat RAL
GL - Clear safety glass	INOX - Stainless steel

TDS* - Optional use of various materials

The following table shows basic types of lifts by their carrying capacity and dimensions.

Passenger lifts
CARRYING CAPACITY	320kg	400kg	630kg	800kg	1000kg	1250kg	1600kg	2000kg
NUMBER OF PERSONS	4	5	8	10	13	16	21	26
CABIN WIDTH	900mm	1100mm	1100mm	1350mm	1600mm	1200mm	1400mm	1500mm
CABIN LENGTH	1000mm	1000mm	1400mm	1400mm	1400mm	2300mm	2400mm	2700mm
CABIN HEIGHT	2200mm	2200mm	2200mm	2200mm	2300mm	2300mm	2300mm	2300mm
LANDING DOOR WIDTH	700mm	800mm	800mm	800mm	1100mm	1100mm	1300mm	1300mm
DOOR HEIGHT	2000mm	2000mm	2000mm	2000mm	2100mm	2100mm	2100mm	2100mm

ADDITIONAL EQUIPMENT OF PASSENGER LIFTS

Use of the Ziehl Abegg synchronous machines and the Zetadyn regulation, Germany.
Door version made of the INOX material, in Decoglass or Aldeco versions.
Use of the TDS subceiling - Air purifier with the ionization function. (Antibacterial function.)
Cabin air conditioning
Glass floor with optional LED lights
Recuperation unit – energy recuperation when the lift brakes, and the reverse energy supply to the power line.
Other options of technical and design additional equipment by the TDS (Tuchyňa Design Solution)
