General technical description of lifts

Technical description of passenger lifts, freight lifts, and parking systems:

The Pavol Tuchyňa, Tuchyňa – Výťahy Company supplies passenger lifts of all categories. As the name indicates, passenger lifts are used for vertical transport of persons.

Passenger lifts of the Tuchyňa - Výťahy Company represent the main domain of the company and this category is currently in the process of the most intensive development.

Main groups of passenger lifts and their classification are described in the paragraphs below.

Technical classification of lifts:
  • Lift’s carrying capacity
  • Travel speed
  • Shaft type
  • Drive location
  • Drive type
Lift’s carrying capacity:

- 250 kg – 6,000 kg (passenger lifts, freight lifts, and parking systems)

Carrying capacity of lifts depends on cabin dimensions. Cabin dimensions are adjusted to shaft dimensions and are designed according to the required capacity requirements. Lift carrying capacity generally ranges between 250 kg – 6,000 kg.

TRAVEL SPEED – 0.63 m/s– 4 m/s

- Above 4 m/s (special solutions)

Travel speed of lifts is determined by the EN 81-1,2 standard, depending on number of stations, required transport capacity and a customer’s demand. Standard travel speed ranges between 1.0 m/s and 1.6 m/s for lifts with up to 20 stations. In case of high-speed lifts with the travel speed above 4m/s the Tuchyňa - Výťahy company in cooperation with its partners is able to offer special solutions as well.

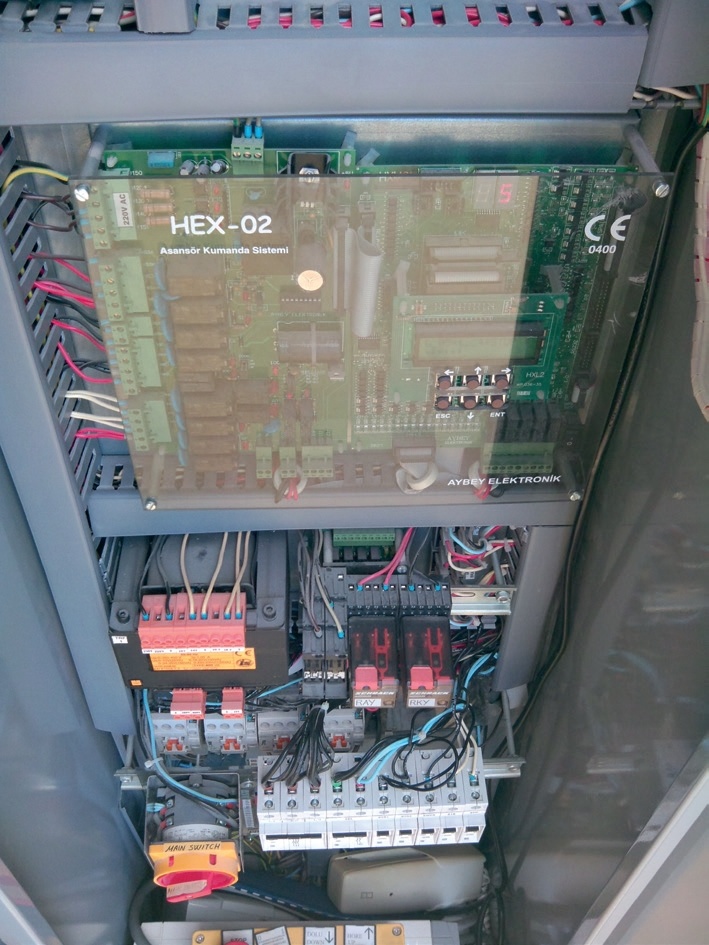

Lift control

The ACT and ACH lift control is the newest control system used in all lift categories by the Pavol Tuchyňa, Tuchyňa – Výťahy company.

In 2011, our company launched a new series of the ACT control for traction lifts with possible extension to 32 stations and control of eight lifts in a group control. In case of hydraulic system, the ACH type is used for 16 stations.

All delivered control systems contain below mentioned functions and by adjusting the parameters they can be modified at any time during the operation.



Standard parameters:

  • simplex, duplex, triplex control, up to 8 lifts in a group,
  • parallel communication, serial communication from the cabin operating panel (COL), serial communication from COL and landing operating panels (LOPs),
  • control circuit with 3 phases and temperatures (thermistor),
  • detailed list of error reports (date, time, error) with the memory of up to 250 errors,
  • short calls and sending of detailed GSM messages in case of failure,
  • exact time and date,
  • connection to control system using a PC via the Internet, local network and USB, lift monitoring,
  • CAN – bus communication in the shaft and in the group,
  • pursuant to EN81-1 standard, CE certified control system,
  • pursuant to EN81-72, fire protection standard for lifts,
  • detectors, shaft encoder, and regulation encoder with output for data on individual storeys,
  • special software for protection against undesired access to the lift control system

Shaft type:

  • Ferro-concrete
  • Brick
  • Metal – lined with a solid wall.
  • Metal with glass walls – panoramic shafts

Lift portfolio includes solutions for all shaft types, whereas all the components are adjusted to these requirements, whether regarding technical, static, or aesthetic aspects.

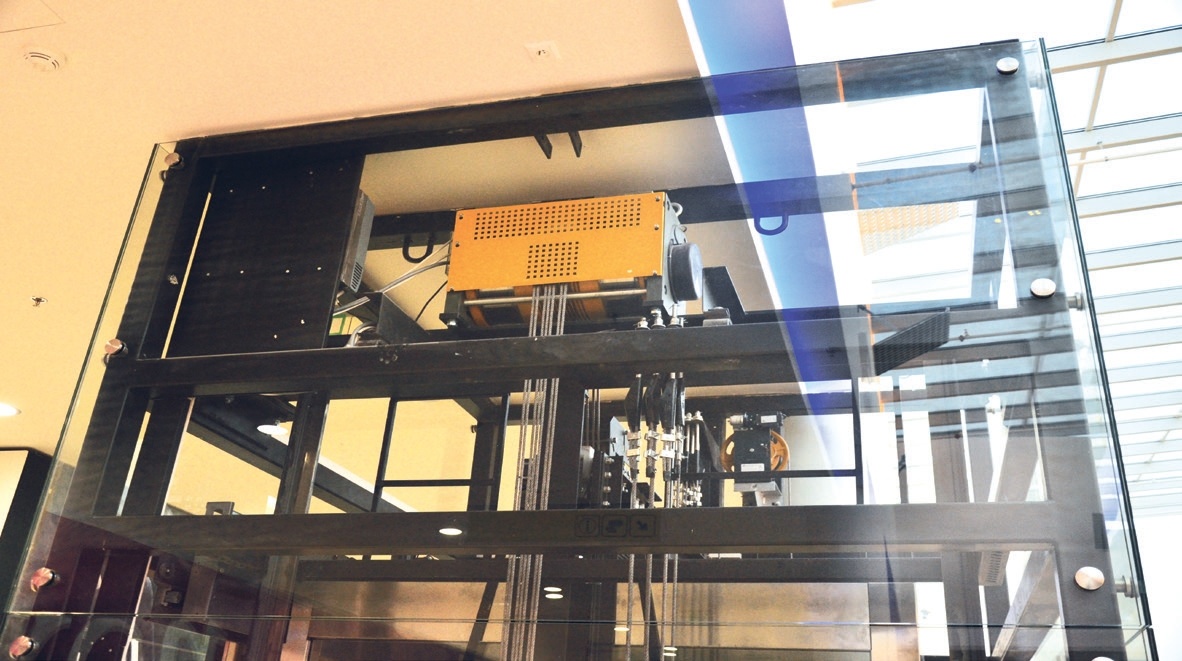

Drive location:
  • machine room
  • machine room-less

Just like in other global manufacturers, the drives and the controls of lifts by the Tuchyňa – Výťahy company are mostly located in the lift shaft, especially in the lift head or in the pit. In case a building already has a machine room, it is used for placement of the drive and the control due to better access to these equipments, compared to machine room-less lifts.

Drive types:

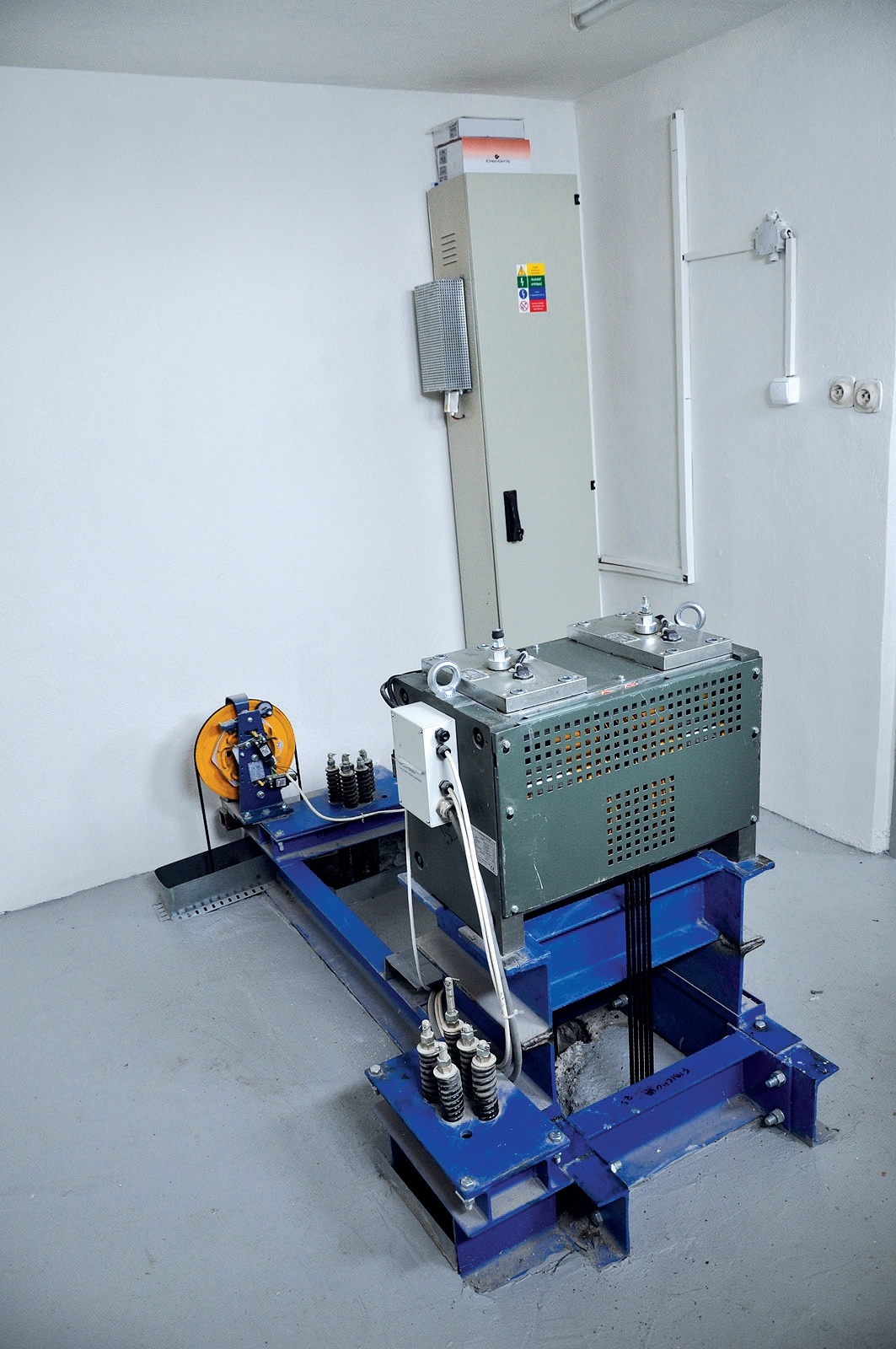

Traction machines:

Traction machines are divided into two main categories, geared and gearless. Since 2004, the Tuchyňa -Výťahy company has been using only gearless synchronous machines of the newest concept when delivering new lifts, providing complete reconstructions, and even in case of partial renovations. The machines are delivered together with the manual brake release and sliding equipment in case of the machine room solution, or electrical sliding in case of the machine room-less version. These machines are used for passenger lifts, freight lifts, and parking systems with the carrying capacity of up to 5,000 kg and speed of 4m/s and more.

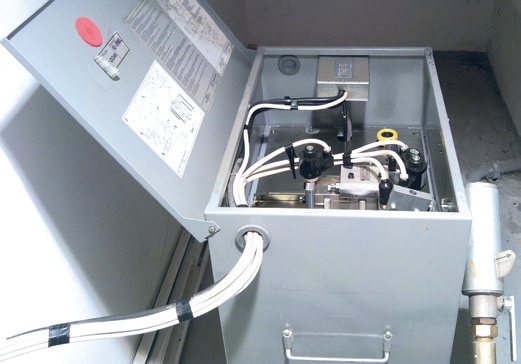

Hydraulic drives:

Hydraulic drives are currently used mainly for lifts with lower travel rise, lower required speed, and high carrying capacity. An advantage of the hydraulic system is a very low noise level, possible use with lifts with a high carrying capacity; moreover, this system provides high reliability.

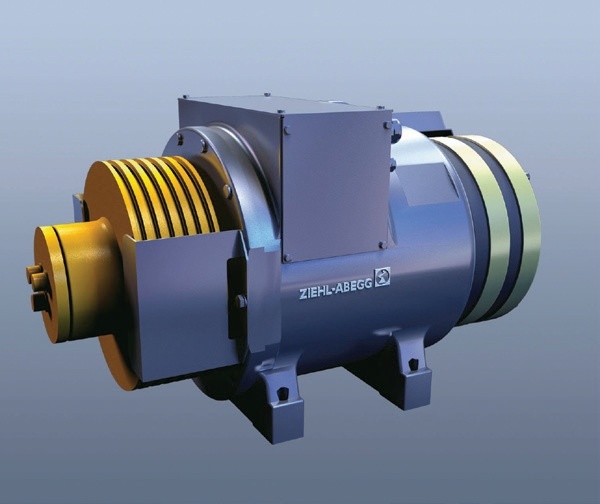

Lift drive units

For lifts using traction machines, the Pavol Tuchyňa, Tuchyňa – Výťahy company uses exclusively the most advanced technology, particularly the synchronous gearless machines that permanently use magnets. Gearless synchronous lift machines are characteristic with plenty of advantages, compared to conventional geared machines.

Energetic efficiency and saving - energy saving compared to conventional drives ranging between 45 and 55 %

Minimum maintenance - no oil or fat media

Long life - minimum number of rotating parts and no gears

Environment and ecology - low energy consumption, exclusion of lubricating oils

Fast economic return - energy saving rate reduces the recoupment period

Silent operation - low noise level of machines with possible placement into lift shafts for the so-called machine room-less lifts

Comfortable travel and emergency drive - smooth start, landing, and stopping, smooth lift travel

Manual drive - machine room versions enable safe cabin sliding using the manual brake release and removable manual wheel

Cabin doors and landing doors
  Type/opening system Machine control Number of panels Frame type
Cabin at./ce,te ; at.bus/fold. vvvf 2,3,4,6, portal
Landing m ; at./ce,te m.*/ vvvf 1*, 2,3,4,6 f, fl

at - automatic
at.bus - bus-type automatic
m* - manual
fl - frameless door
vvvf - frequency regulation
ce - central
te - telescopic
* - (applicable to manual door only)
f - frame door
1* - single-wing
fold* - folding
Fire resistance of landing door   Surface finish
- ew 30 - (standard)  - ew 60, 90   - Electrostatic spray application ral (standard)    - Clear safety glass Konex
- ei 30, 60, 90     - Stainless steel - Decoglass, Aldeco, Hpl
Automatic cabin door drives are standardly supplied with the VVVF frequency regulation.

The doors meet the new annex to the standard EN - 81+A3 that ensures increased safety for service staff and users.

The Pavol Tuchy¬ňa, Tuchyňa - Výťahy company offers a wide variety of the door surface finish types. The TCH products are offered and supplied in unique versions to be used exclusively for the company’s lifts.

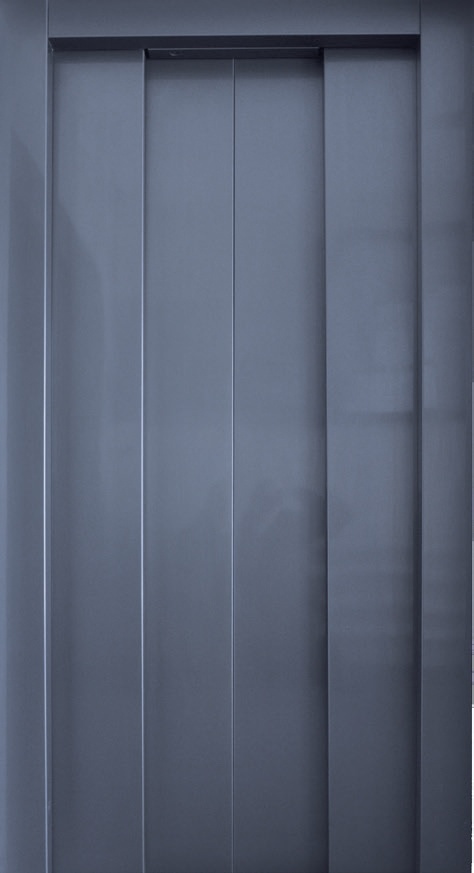

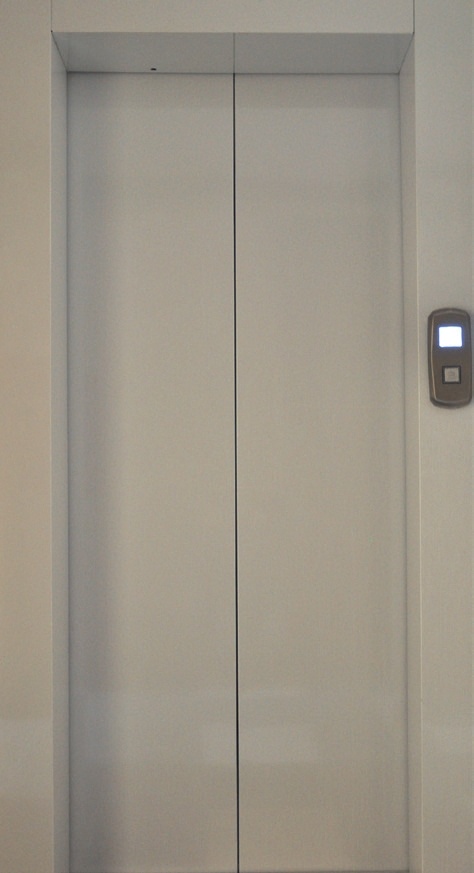

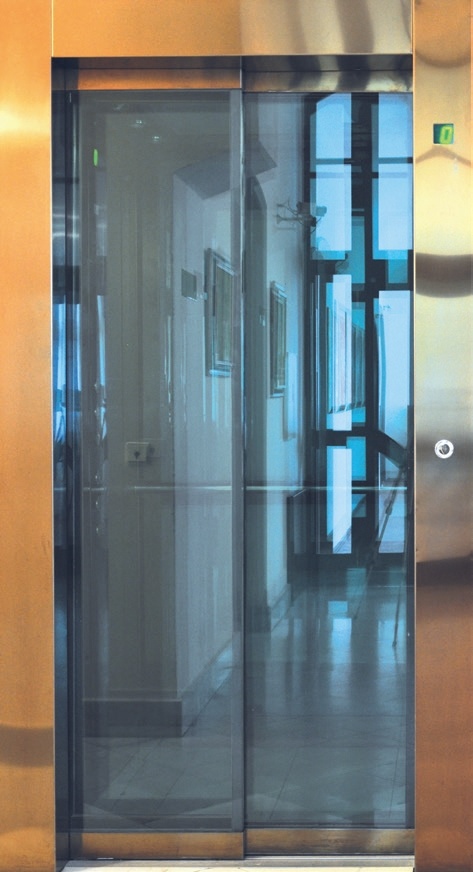

2-panel, telescopic, glass 2-panel central LA 4-panel central ESN RAL
