Technical description

ESP-L ESCALATOR SERIES 30°

Stair width Stair height 3000 3500 4000 4500 5000 5500 6000
1000 NETTO G(KN) 66 70 74 78 86 90 94
LOAD R1(KN) 62 66 70 74 80 85 89
R2 (KN) 54 58 62 66 72 77 81
MOTOR P(KW) 5,5 8 11
800 NETTO G(KN) 62 66 70 73 77 81 85
LOAD R1(KN) 55 58 62 66 69 73 77
R2 (KN) 47 51 54 58 61 65 69
MOTOR P(KW) 5,5 8 11
600 NETTO G(KN) 59 62 66 69 73 77 80
LOAD R1(KN) 48 51 54 57 61 64 67
R2 (KN) 40 43 47 50 53 56 59
MOTOR P(KW) 5,5 8

ESCALATOR STAIR
600		 STAIR
800		 STAIR
1000

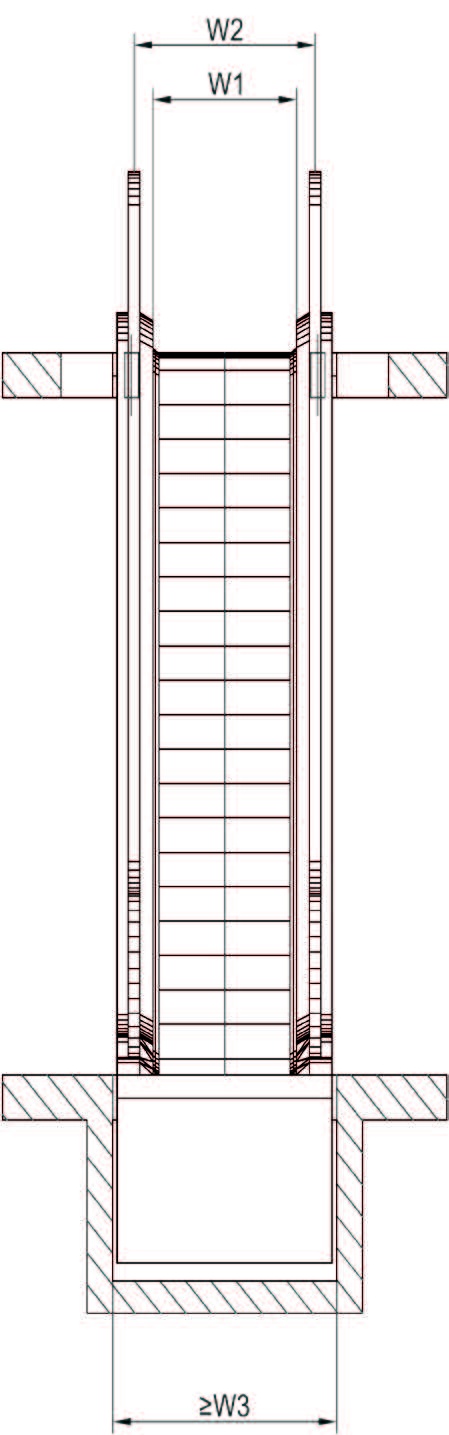

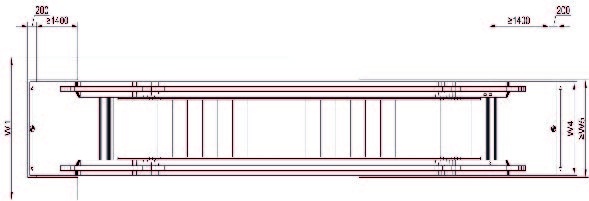

STAIR WIDTH (W1) 600 800 1000
HANDRAIL DISTANCE (W2) 850 1050 1250
PIT WIDTH (W3) 1280 1480 1680
ESCALATOR WIDTH  (W4) 1140 1340 1540
PIT WIDTH (W5) 1200 1400 1600
PIT WIDTH (W6) 1850 2050 2250
300 ESP-M escalator series   350 ESP-M escalator series   350 ESG-L AND ESG-M escalator series
ESCALATOR STAIR
600		 STAIR
800		 STAIR
1000
STAIR WIDTH (W1) 600 800 1000
HANDRAIL DISTANCE (W2) 910 1100 1310
PIT WIDTH (W3) 1340 1540 1740
ESCALATOR WIDTH (W4) 1200 1400 1600
PIT WIDTH (W5) 1260 1460 1660
PIT WIDTH (W6) 1910 2110 2310

ESCALATOR STAIR
600		 STAIR
800		 STAIR
1000
STAIR WIDTH (W1) 600 800 1000
HANDRAIL DISTANCE (W2) 850 1050 1250
PIT WIDTH (W3) 1280 1480 1680
ESCALATOR WIDTH (W4) 1140 1340 1540
PIT WIDTH (W5) 1200 1400 1600
PIT WIDTH (W6) 1850 2050 2250

ESCALATOR STAIR
800		 STAIR
1000
STAIR WIDTH (W1) 800 1000
HANDRAIL DISTANCE (W2) 1100 1310
PIT WIDTH (W3) 1540 1740
ESCALATOR WIDTH (W4) 1400 1600
PIT WIDTH (W5) 1460 1660
PIT WIDTH (W6) 2110 2310

ESP-M ESCALATOR SERIES 30°

Stair width Stair height 3000 3500 4000 4500 5000 5500 6000
1000 NETTO G(KN) 66 70 74 78 86 90 94
LOAD R1(KN) 62 66 70 74 80 85 89
R2 (KN) 54 58 62 66 72 77 81
MOTOR P(KW) 5,5 8 11
800 NETTO G(KN) 62 66 70 73 77 81 85
LOAD R1(KN) 55 58 62 66 69 73 77
R2 (KN) 47 51 54 58 61 65 69
MOTOR P(KW) 5,5 8 11
600 NETTO G(KN) 59 62 66 69 73 77 80
LOAD R1(KN) 48 51 54 57 61 64 67
R2 (KN) 40 43 47 50 53 56 59
MOTOR P(KW) 5,5 8

ESCALATOR STAIR
600		 STAIR
800		 STAIR
1000
STAIR WIDTH (W1) 600 800 1000
HANDRAIL DISTANCE (W2) 910 1110 1310
PIT WIDTH (W3) 1340 1540 1740
WIDTH
ESCALATOR (W4)		 1200 1400 1600
PIT WIDTH (W5) 1260 1460 1660
PIT WIDTH (W6) 1910 2110 2310

ESP-M ESCALATOR SERIES 35°

Stair width Stair height 3000 3500 4000 4500 5000 5500 6000
1000 NETTO G(KN) 62 66 69 73 77 80 85
LOAD R1(KN) 58 62 65 69 72 76 81
R2 (KN) 50 53 57 61 64 68 73
MOTOR P(KW) 5,5 8 11
800 NETTO G(KN) 59 62 65 69 72 75 79
LOAD R1(KN) 52 55 58 61 64 67 70
R2 (KN) 43 47 50 53 56 59 62
MOTOR P(KW) 5,5 8
600 NETTO G(KN) 56 59 62 65 68 71 75
LOAD R1(KN) 45 48 51 53 56 59 61
R2 (KN) 38 40 43 46 48 51 53
MOTOR P(KW) 5,5 8

ESCALATOR STAIR
600		 STAIR
800		 STAIR
1000
STAIR WIDTH (W1) 600 800 1000
HANDRAIL DISTANCE (W2) 850 1050 1250
PIT WIDTH (W3) 1280 1480 1680
ESCALATOR WIDTH (W4) 1140 1340 1540
PIT WIDTH (W5) 1200 1400 1600
PIT WIDTH (W6) 1850 2050 2250
